Product Description

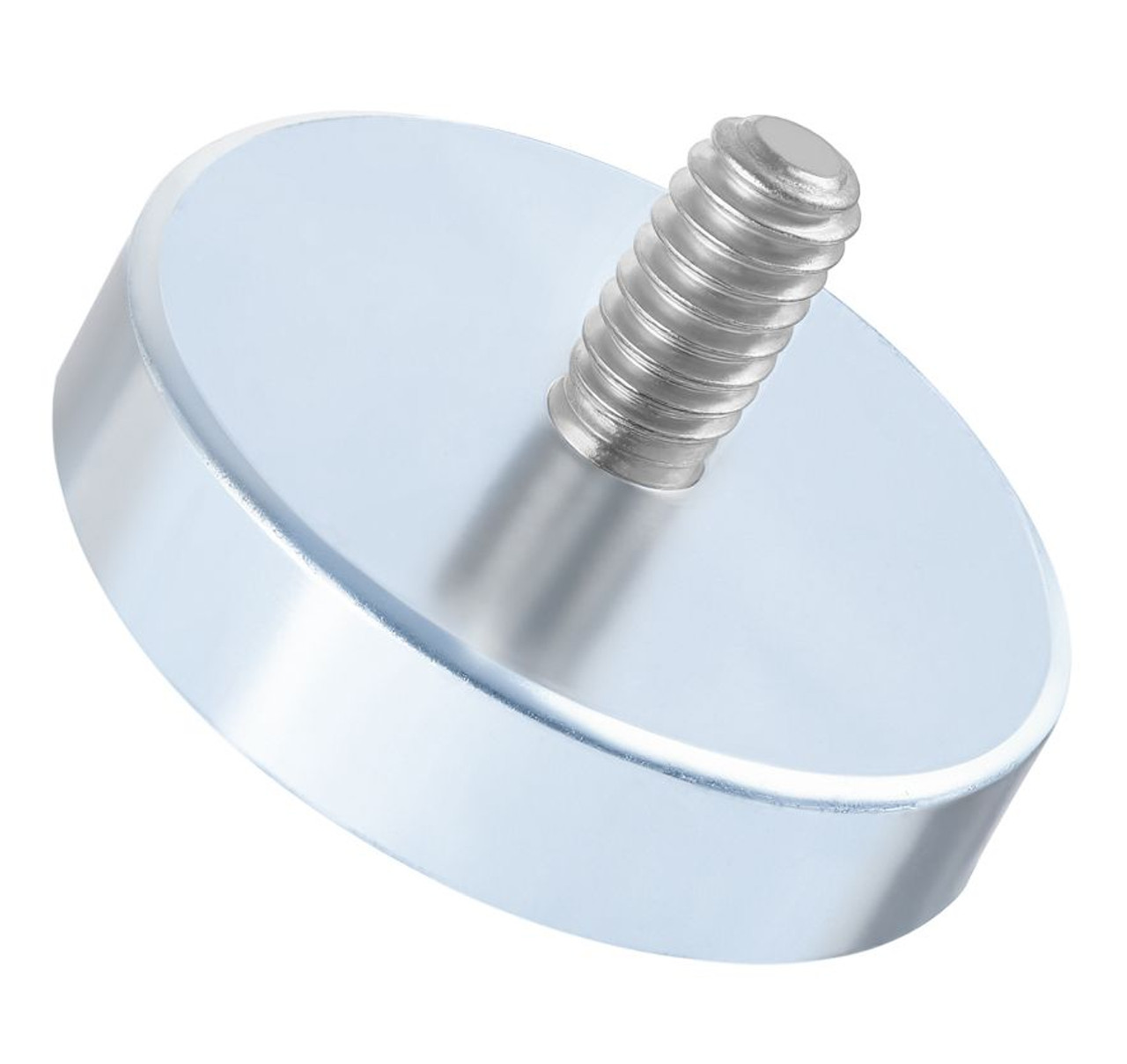

1.42 Inch Encased Neodymium Magnets with Threaded Stud
Neodymium Cup Magnets with 1/4-20 x 1/2" Male Threaded Stud 1.42 inch Diameter 125 lbs Pull Force
Made with the strongest magnets - neodymium magnets, much stronger than ceramic magnets.
Neodymium Cup magnets are made from neodymium magnets, the world's strongest magnets. Neodymium cup magnets provide much stronger holding power than ceramic cup magnets.
This handy and useful strong neodymium cup magnet has a strong magnet embedded inside a Nickel coated steel cup to offer the maximum gripping power. The steel cup offers protection for the magnet and concentrates the magnetic force on the magnet surface.The cup magnet has a threaded male stud that is perfect for mounting with a bolt or screw.
Strong Neodymium Cup Magnets Size: 36 mm OD x 8 mm thick with 1/4-20 Threaded Male Stud
1.42" Diameter x 0.32" thick with 1/4-20 x 1/2" Male Threaded Stud
neodymium cup magnets are widely used in industrial applications such as fastening, holding, hanging or retrieving objects, etc.
Male Thread Size : 1/4-20
Threaded Male Stud Height: 1/2 inch
Cup Diameter: 1.42 inch
Cup Height: 0.32 inch
Magnet Coating: Nickel-Copper-Nickel
Cup Coating: Zinc
Magnetized through thickness, poles on the flat surface
Estimated Pull Force: 125 lbs
Contact us for neodymium cup magnets wholesale discount
