Product Description

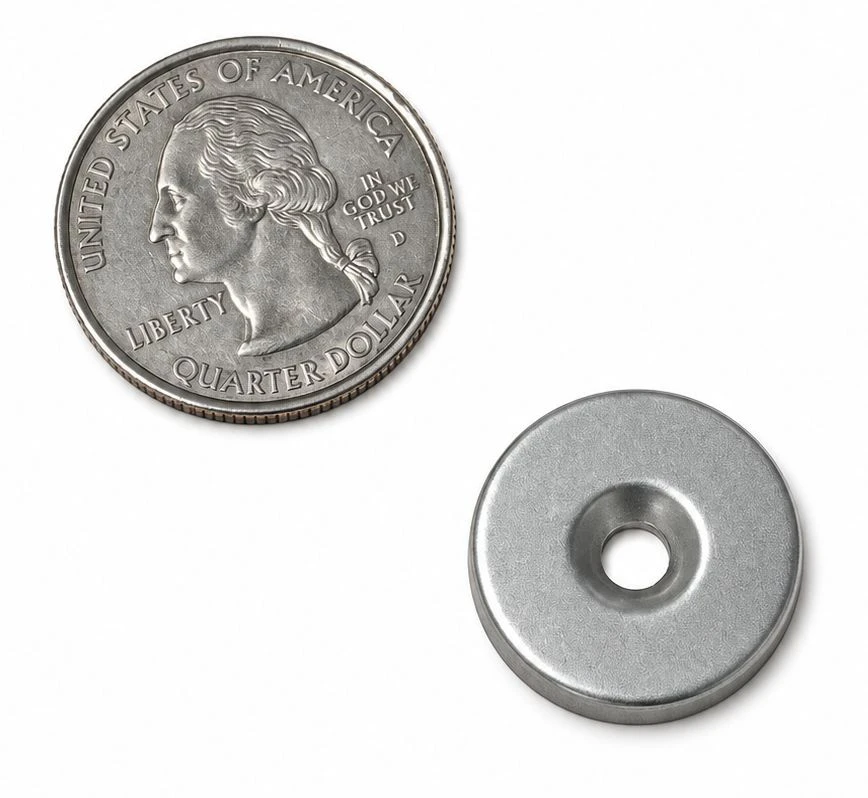

N52 3/4 x 1/8 Inch Neodymium Magnet Encased in Protective Steel - Shatter-Resistant Screw-Mount Magnet
Product Description
Combine powerful N52 neodymium magnetic strength with the added protection of a steel casing. These countersunk disc magnets feature a protective steel housing that helps shield the brittle magnet core from chips, cracks, and shattering caused by accidental contact or mounting stress.
The countersunk center hole accepts a compatible flat-head screw for secure, flush mounting to wood, panels, fixtures, and other suitable surfaces. Ideal for magnetic catches, tool holders, workshop organization, displays, and DIY mounting projects.
work with #4 flat head screws.
-
N52 neodymium magnets: Strong magnetic holding power in a compact disc design.
- Assembly size: 0.77" diameter x 0.14" thick with 0.28x0.16" 82 degree countersunk hole, work with #4 flat head screws.
- Magnet size: 3/4" diameter x 1/8" thick disc (0.75"x0.125")
- Pull force: approximate 13 lbs
-
Protective steel casing: Helps protect the magnet core from impact damage during handling and installation.
-
Shatter-resistant construction: Protective steel casing helps reduce chipping, cracking, and shattering when magnets strike one another or experience excess pressure during screw tightening. Avoid overtightening; magnets are not shatterproof.
-
Countersunk screw hole: Allows secure attachment with a compatible flat-head screw.
-
Versatile mounting: Suitable for home, workshop, retail, and industrial projects.
Installation note: Fasten through the existing countersunk hole. Do not drill into the magnet or overtighten the screw. Steel casing improves impact resistance, but the magnet is not shatterproof.
